Camlocks C11 - C32
Write a Review
Camlocks C11 - C32
All-round Camlock
- 180 degree camlock
- Key removable in locked and unlocked position
- Nickel plated
- Additional cams available from 25.5mm to 51.5mm

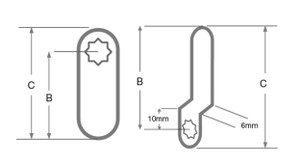

- Cranked cams available (35/5mm 40/5mm)
- Non-removable fixed cam on 11mm only
- Nickel plated brass keys
- Keyed alike in stocked suites KA1 and KA2 (available loose only)
| Art No. | Packaging | EAN |
Overall Max. (mm) 'A' on drawing |
Diameter (mm) | Cams included |
| C11 | Loose | 701597 0 | 11 | 18.6 | 1 x Straight - fixed |
| C16 | Loose | 701625 0 | 16 | 18.6 | 1 x Straight |
| C20 | Loose | 701626 7 | 20 | 18.6 | 1 x Straight |
| C27 | Loose | 701627 4 | 27 | 18.6 | 1 x Straight |
|
C32
|
Loose
|
701628 1
|
32
|
18.6
|
1 x Straight
|
| C11V | Visi | 701471 3 | 11 | 18.6 | 1 x Straight - fixed |
| C16V | Visi | 701472 0 | 16 | 18.6 | 1 x Straight |
| C20V | Visi | 701473 7 | 20 | 18.6 | 1 x Straight |
| C27V | Visi | 701474 4 | 27 | 18.6 | 1 x Straight |
|
C32V
|
Visi | 701475 1 |
32
|
18.6
|
1 x Straight
|
